The LEX3910-15 and LEX3910-45 are power supply modules for the LEX3020. Two types are
available for AC power supply and DC power supply. Up to 2 units can be installed on
the back of the chassis to create a redundant configuration. The power supply modules
have two built-in cooling fans with automatic speed control function. The LED on the
front of the LEX3020 indicates the operating states of the power supply and fans.

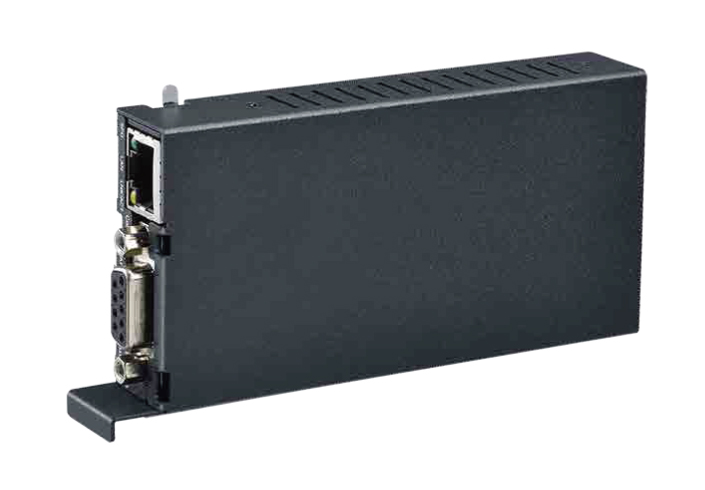

The LEX3930-00 is an SNMP management card for the LEX3020. It allows you to monitor the states of power supply units and fan units installed in the chassis, monitor the link states of LEX3000 series media converters, and configure various settings via a network. In addition, it allows for status monitoring of neighboring line cards via Link OAM (IEEE802.3ah) and wide-area Ethernet status monitoring via Ethernet OAM (IEEE802.1ag / ITU-T Y.1731).
The LEX3930-00 is an SNMP management card for the LEX3020. It allows you to monitor the states of power supply units and fan units installed in the chassis, monitor the link states of LEX3000 series media converters, and configure various settings via a network. In addition, it allows for status monitoring of neighboring line cards via Link OAM (IEEE802.3ah) and wide-area Ethernet status monitoring via Ethernet OAM (IEEE802.1ag / ITU-T Y.1731).
Features
LEX3910-15／LEX3910-45(power supply module)
- Power supply module for LEX3020
- Supports redundant configuration with 2 units installed on the back of housing
- Automatic speed adjustment function for fans (installed in the power supply module)
- LEX3910-15 includes an AC power supply cable with locking m
- Inbound monitoring: Monitoring of status of neighboring line cards and various communication settings via Link OAM (IEEE802.3ah)
- Wide-area Ethernet monitoring: Monitoring of wide-area Ethernet status via Ethernet OAM (IEEE802.1ag / ITU-T Y.1731)
- Media converter function settings
- Management of port communication parameter settings
- SNMP manager authentication settings
- Trap transmission settings for monitoring items
- Download and upload of configuration files
- Supports SNTP (Simple Network Time Protocol) Client
- Supports Syslog Client
LEX3930-00(SNMP Management Card)
Spec
| Models | LEX3910-15 | LEX3910-45 | |
|---|---|---|---|
| Power supply | Rated input power Input range | AC 100-240V 90～264V |
DC -48～-60V -38～-70V |
| frequency | 50/60Hz(47～63Hz) | - | |
| Maximum input power | ～3.5A | ～6A | |
| Maximum Output power | 300W | 240W | |
| DC output voltage | 12V | ||
| Cooling system | Rotational speed/FAN | 4600rpm(Automatic speed control function) | |
| Maximum Air volume/FAN | 0.65㎥/min | ||
| Sound pressure level/FAN | 33dB(A)※Maximum air volume | ||
| Cooling fan | 2 | ||
| Function | Automatic adjustment function | ||
| Environmental condition |
Operating temperature and humidity |
-20～65℃/0～95%(no condensation) | |
| Recommended operating temperature and humidity |
-10～50℃/0～95%(no condensation) | ||
| Storage temperature and humidity | -25～70℃/0～95%(no condensation) | ||
| Dimensions | 216.5mm (W)×160mm(D) ×85.9mm(H) ※without detachable parts |
||
| Physical | 1.3kg | ||
| ISO | Environmental Compliance | RoHS、PSE | |
| Reliability | MTBF | 151,400h(25℃) | 150,000h(25℃) |
| Accessories | AC Power cable (OPT-AC100V-LK-01)※LEX3910-15only、 installation guide、product warranty |
||
| Models | LEX3930-00 | ||
|---|---|---|---|
| Ethernet port | Standards | IEEE802.3(10BASE-T) IEEE802.3u (100BASE-TX) IEEE802.3ab (1000BASE-T) |
|
| Transmission speed | 10/100/1000Mbps | ||
| Function | Full / Half Duplex Auto negotiation Auto MDI / MDI-X |
||
| Console port | Connector type | RS-232C | |
| Transfer speed/method | 115.2kbps、8bit、no parity | ||
| Environmental condition | Operating temperature and humidity |
-20～65℃/0～95%(no condensation) | |
| Recommended operating temperature and humidity |
-10～55℃/0～95%(no condensation) | ||
| Storage temperature and humidity |
-25～70℃/0～95%(no condensation) | ||
| Dimensions | 55mm (W)×110mm(D) ×20mm(H) ※without detachable parts |
||
| Physical specification | 170g | ||
| Electrical Approvals | Electromagnetic Interference | VCCI class A | |
| ISO | Environmental Compliance | RoHS | |
| Reliability | MTBF | 390,000h (25℃) | |
| Accessories | RS232C cable(male-female connector)、 installation guide、product warranty |
||
