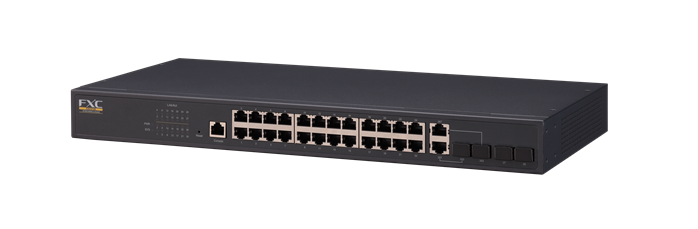

FXC5728
High-performance and fan-less gigabit switch
The FXC5700 series is a Gigabit L2 switch equipped with 10/100/1000Mbps RJ45 ports and independent Gigabit SFP slots.
It's easy to maintain and manage, meeting the access requirements for networks in schools, municipalities, hotels, offices, and campuses.
FXC5728
Features
- Supports Jumbo Frames
- Supports 8K MAC address entries
- Supports STP (IEEE802.1D compliant), RSTP (802.1w compliant), and MSTP (802.1s compliant)
- Supports link aggregation using StaticLAG and LACP
- Supports port-based VLAN, IEEE 802.1Q VLAN, Voice VLAN, and Q-in-Q (double tagging)
- Supports 8-level 802.1p / DSCP / TOS QoS on each port
- Equipped with flow control functions for IEEE 802.3x (Full Duplex) and back pressure (Half Duplex)
- Supports loop detection/prevention
- Supports VLAN registration and guest VLAN in accordance with IEEE 802.1x security features
- Supports packet control from L2 to L4 with ACL functions
- IGMP snooping for IP multicast to limit multicast data and ensure optimal performance
- Supports broadcast/multicast/unicast storm control
- Supports ARP inspection
- Supports RMON 1, 2, 3, 9
- Supports downloading/uploading text-based configuration files
- Supports DHCP client / DHCP Option 82 relay / DHCP snooping
- Energy-saving with IEEE802.3az compliant EEE power management and Green Ethernet88
- Supports Web GUI and CLI (Console Port, Telnet, SSH)
- RoHS 2.0 compliant
Spec
| Models | FXC5728 | |
|---|---|---|
| Ports | 10/100/1000M RJ45 port | 24 |
| 100/1000M SFP | 2 | |
| RJ45/SFP (Combo) | 2 | |
| Console (RJ45) | 1 | |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE802.3z,IEEE802.3x,IEEE802.1D, IEEE802.1w,IEEE802.1s,IEEE802.1p,IEEE802.1Q, IEEE802.3ad,IEEE802.1X |
|
| Packet forwarding capacity | 1000BASE-T | 1,488,000 pps |
| 100BASE-TX | 148,800 pps | |
| 10BASE-T | 14,880 pps | |
| Total Throughput | 41.66 Mpps | |
| Switch Fabric | 56Gbps | |
| Frame Buffer | 4.1 Mbit(512 KBytes) | |
| Jumbo Frame Size | 9,216 Bytes | |
| Flash memory | Capacity | Flash: 30 MBytes |
| Access Control Method | CSMA/CD | |
| Data Transfer Method | Store & Forward Method | |
| Compatible Cable | 1000BASE-T | Category 5e or higher (UTP or STP) |
| 100BASE-TX | Category 5 or higher (UTP or STP) | |
| 10BASE-T | Category 3 or higher (UTP or STP) (Fixed settings are required for 2-pair cables) |
|
| Transmission distance | RJ45 | Maximum 100m |
| SFP | Depending on the SFP selection | |
| LED(PWR) | Lights up (green | Power on |
| Lights out | Power OFF, power abnormality | |
| LED(SYS) | Lights up (green | Normal operation |
| Lights out | Power OFF | |
| LED(LINK/ACT) | Lights up (green | Link established |
| Blinking (green) | Power OFF | |
| off | Link down/not connected | |
| Power supply | Rated input | AC100-240 V, 50/60 Hz |
| Maximum Input Current | MAX 0.240 A | |
| Maximum Power Consumption | 24.0 W | |
| Maximum Heat Dissipation | 20.64 kcal/h | |
| Energy Conservation Act | Energy Consumption Efficiency | 0.85 W/Gbit/s |
| Classification | A | |
| Maximum effective transmission speed | 28 Gbit/s | |
| Maximum heat output | Passed | |
| Energy saving achievement rate | 260.80% | |
| General specifications | External dimensions (W*D*H) | 441.5 x 208 x 44 mm |
| weight | 2.61 kg | |
| Operating temperature/humidity | 0～ +50℃ / 10～90% *No condensation | |
| Storage temperature/humidity | -40 ～+70℃ / 5 ～ 90% *No condensation | |
| Cooling method | Fanless | |
| EMI standard | VCCI class A | |
| Environmental compatibility | RoHS 2.0 Directive Compliant | |
| Reliability (MTBF) (25℃ environment) | 91,115h | |
| Eco function | EEE (Green Ethernet) | IEEE802.3az compliant |
| MAC Address Table | method | Auto-learning |
| Aging Time | 300 seconds | |
| maximum number | 8K | |
| Access Control Method | CSMA/CD | |
| Switching Method | Store and Forward | |
| DDMI | SFF-8472 compliant | |
| VLAN | 802.1Q VLAN, 802.1ad VLAN Q-in-Q, Port-based VLAN, Voice VLAN, Private VLAN, MAC-based VLAN, Protocol-based VLAN, IP Subnet VLAN |
|
| Maximum number of registrations | 4094 | |
| VLAN ID range | 1 – 4094 | |
| Loop Control Function | Loop detection function, loop prevention function, Loop prevention automatic recovery function, loop detection frame | |
| Storm Control | Broadcast / Multicast / Unicast | |
| Rate Limit | 1k to 1,000,000k (in 16kbps increments) | |
| Spanning Tree | STP/RSTP/MSTP | |
| Link Aggregation | static | Maximum 8 ports/8 groups |
| LACP | Maximum 8 ports/8 groups | |
| DHCP | DHCP client, DHCP server, DHCP relay, DHCP snooping |
|
| Qos | CoS/802.1p, DSCP, scheduling, priority queuing | |
| Multicast | IGMP Snooping | v1/v2/v3 |
| MLD Snooping | v1/v2,Multicast VLAN | |
| Time Synchronization | NTP/SNTP | |
| Security | 802.1X authentication, dynamic/guest VLAN, MAC-based authentication, MAC address filtering, Port IP source guard(※ static only), ARP inspection, Access control lists, 1.5K tables |
|
| log | Syslog, multiple log server registration | |
| Syslog log storage capacity | buffered:32K Flash:10KB | |
| SNMP | v1/v2c/v3 | |
| RMON | Group1・2・3・9 | |
| sFlow | Support*2 | |
| Monitor/Diagnostics | Port mirroring, simple cable diagnostics, Ping, Traceroute |
|
| Adjacent detection function | LLDP,LLDP-MED | |
| Management function | Web management function | HTTP/HTTPS (TLS1.2) |
| CLI management features | Console/Telnet/SSHv2 | |
| Firmware Update | CLI/GUI | |
| Configuration files | Backup (download), Restore (upload), Initialization (factory settings),<>brCLI/GUI/Reset button |
|
| Reset function | Software restart, reset button | |
| Others | DNS client (up to 6 servers), DNS proxy, Camera detection/monitoring VLAN, ERPS/MRPP, ULPP, ULSM, UDLD, static routes (512 routes) |
|
| Accessories | Installation guide & warranty card, power cable,console cable, rack mount kit, rubber feet | |
