LE100ADS
LightEdge100ADS is a multi-protocol/multi-rate ADM/muxponder/transponder
with a flexible uplink multiplexing capability of up to 200Gb/s.
LightEdge100ADS can multiplex client services to one or two independent 100Gb OTU4 uplinks without affecting each service.
Services are mapped onto one or two 100Gb OTU4 uplinks over Layer 1 via the optimal FEC for the network, with no packet loss and without
affecting other services. 100Gb OTU4 uplinks can support simultaneous
multiplexing of OTU2/OTU2e/OTU4, 10Gb/40Gb/100Gb Ethernet, SDH/SONET,and Fiber Channels.
This provides an optimal access platform for multiple clients, allowing integration of existing and new services without affecting them.
LE100ADS
Features
- Muxponder/transponder solutions responding to the OTU2/OTU2e/OTU4 and 10G/40G/100G Ethernet multiservices (Layer1 device)
- Compact 1U and 19-inch rack size

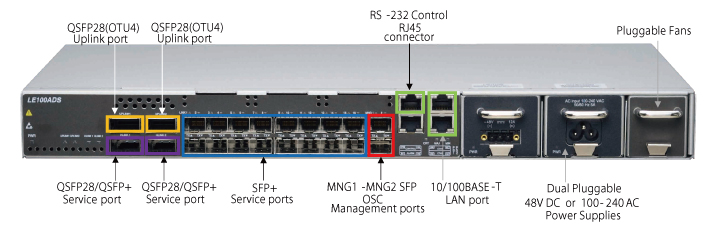

- Front implementation of all interfaces that provides excellent operability and easy maintenance work
- Supported client interface: 100GBASE-SR4/LR4/ER4, 40GBASE-SR4/LR4, 10GBASE- SR/LR/ER, STM-64/OC-192, 8G/16G FC, OTU2/OTU2e/OTU4
- Provides long-distance transport
- No restrictions on the transportable frame length
- Simple configuration and management
- Increased set of management functions • LOS Propagation function (link-loss transfer function)
- Provides the power duplication (AC/DC power selectable) and FAN (speed automatically controlled) as standard * The FAN unit has an automatic speed control mechanism that reduces power consumption
- Equipped with the rack mount kit as standard
• Automatic Laser Shutdown (ALS function)
• Web GUI (HTTP/HTTPS), SNMP, Syslog, RADIUS, telnet/ssh, Console
• Inband GCC or OSC remote management function
• Performance function (optical input/output monitor, line quality monitor)
• Supports the FEC (Forward Error Correction) function
• Loop-back test function, PRBS test function
• Remote power discontinuity detection function (Dying gasp)

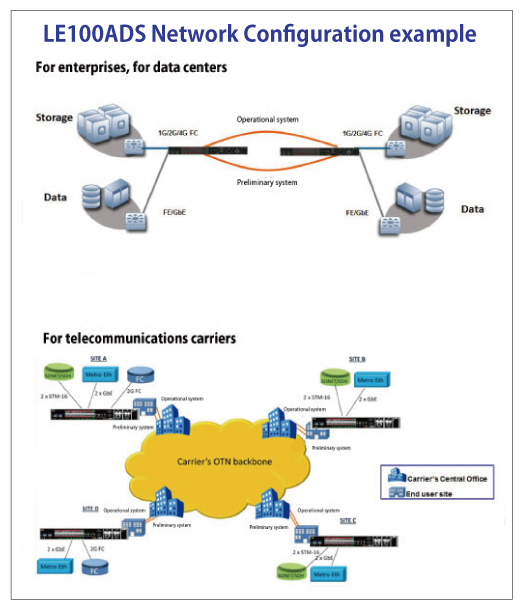

Network configuration example
Spec
| Models | LE100ADS | |
|---|---|---|
| Client interface | Number of Ports | 18 |
| Interface | 100GBASE-SR4/LR4. 40GBASE-SR4/LR4/ER4, 10GBASE-SR/LR/ER, STM-64/OC-192, 8G/16G FC, OTU2/OTU2e, OTU4 |
|
| Data rate | 8Gbps～112Gbps | |
| Connecter | SFP+/QSFP+/QSFP28 transceiver | |
| frame length | No restrictions | |
| Uplink interface | Number of Ports | 2 |
| Wavelength | Depend on selection QSFP28 transceiver | |
| Applicable optical fiber | MMF, SMF | |
| Light power dissipation | Depend on selection QSFP28 transceiver | |
| Management port | Console port | Interface: RS-232, RJ-45 Connector: 8pin, TypeD, Transfer rate:9600bps |
| Management port | 10/100 BASE-T port | |
| Remote management channel | GCC(General Communication Channel) , OSC | |
| Management IP address | Manual Configuration(Console) | |
| Alarm display, Monitoring |
Alarm | Viewable 512 events immediately(GUI), timestamp |
| Power | Power supply Hot Swap |
AC:100V～240V／AC 50/60Hz (Max.5A) DC:-48V DC(Max.12A) |
| Power consumption | 170W | |
| Dimensions Physical specification |
Dimensions | 440mm(W)x285mm(D)x44mm(H), 1U |
| Weight(all components mounting) | Max.7.0kg | |
| Operating Temperature/Humidity | 0℃～45℃/max.90％ (no condensation) |
|
| Approvals | CE/FCC/VCCI/RoHs Compliant | |
