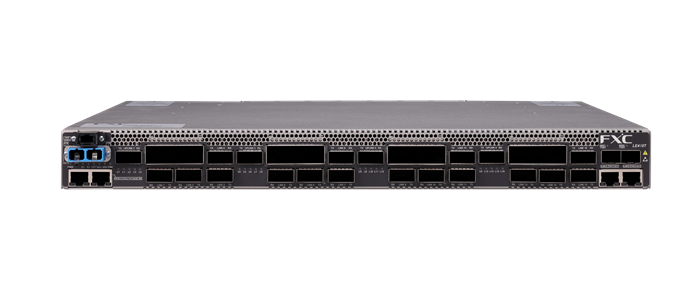

LE410TA/LE410TB
1.6T Transponder / Max Pondar
Single-fiber, bidirectional, 1U size enables long-distance transmission of up to 1.6T
100G/400G transponder/muxponder
The LE410TA and LE410TB are transponders/muxponders that support transmission speeds of up to 1.6 Tbps.
Equipped with an EDFA amplifier and a 4-channel Mux/Demux,
the devices are also equipped with four 400G uplink ports,
enabling high-capacity transmission of up to 1.6 Tbps despite their 1U size.
This product is used by interconnecting the LE410TA and LE410TB.
The COM port uses a single core for bidirectional communication, so the LE410TA and LE410TB support different wavelengths,
enabling single-core bidirectional transmission.
The EDFA also features one booster amplifier and one preamplifier, enabling long-distance transmission at 35 dB.
The LE410T allows communication with a single relay core.
- 1x400G transponder / 4x100G maxponder
- Uplink:400G CFP2-DCO for Single fiber
- Client: 4×100G QSFP28、400G QSFPDD
- Client interfaces:100GE、OTU4、400GE
- EDFA(Booster amp, Pre amp) mounted
- No limit on the frame length that can be transmitted
- LOS Propagation function (link-loss transfer function)
- Remote management via GCC in-band channel or OSC
- FEC(Forward Error Correction) Function support
- Power supply and FAN support hot swap. Power supply can be redundant (AC and DC can be mixed)
- Performance features(Optical input / output monitor,Line quality monitor)
- Eye Safety function
- Loop-back test function, PRBS test function
- Remote power discontinuity detection function (Dying gasp)
- Client: 4×100G QSFP28、400G QSFPDD

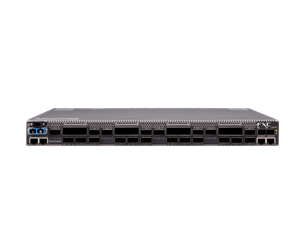

LE410T
Spec
| Models | LE410TA/LE410TB | |
|---|---|---|
| Operational Configuration | Muxponder | 100G x4 or 400G x1 (per 400G port) |
| Transponder | 400G x1 (per 400G port) | |
| Local interface | 400Gb Ethernet / 100Gb Ethernet / OTU4 |
4 Ports |
| 100Gb Ethernet / OTU4 |
12 Ports | |
| Service type | 400GbE,100GbE,OTU4 | |
| Interface | 400G QSFPDD FR4/LR8 400G QSFPDD SR8/DR4/LR4 (future compatible) 100G QSFP28 SR4/LR4/ER4 |
|
| FEC | support | |
| Remote interface (Dark fiber connection port) | Number of Ports | 400G ×4Ports |
| Service type | OpenZR+, OpenROADM | |
| Interface | CFP2-DCO, QSFP-DD DCO (future support) | |
| FEC | support | |
| function | Loss Propagation | support |
| DDMI | support | |
| Eye Safety | support | |
| Management port | Number of ports | 2 Ports |
| Connector Shape | RJ-45 | |
| communication speed | 10/100/1000Base-T / Auto-negotiation | |
| Power | Power Supply Unit Type | AC/DC compatible (depending on module) |
| Power consumption | Max 300W | |
| Hot Swap | support | |
| Physical specification | Weight (all components mounting) | Max.13kg |
| Operating Temperature/Humidity | -5℃～45℃/max. 5%～85%(no condensation) | |
| Storage Temperature/Humidity | -25℃～+70℃ / 5%～90%(no condensation) | |
| Size | 440mm(W)×400mm(D)×44mm(H) 1U Size | |
| Approvals | RoHS and REACH compliant | |
